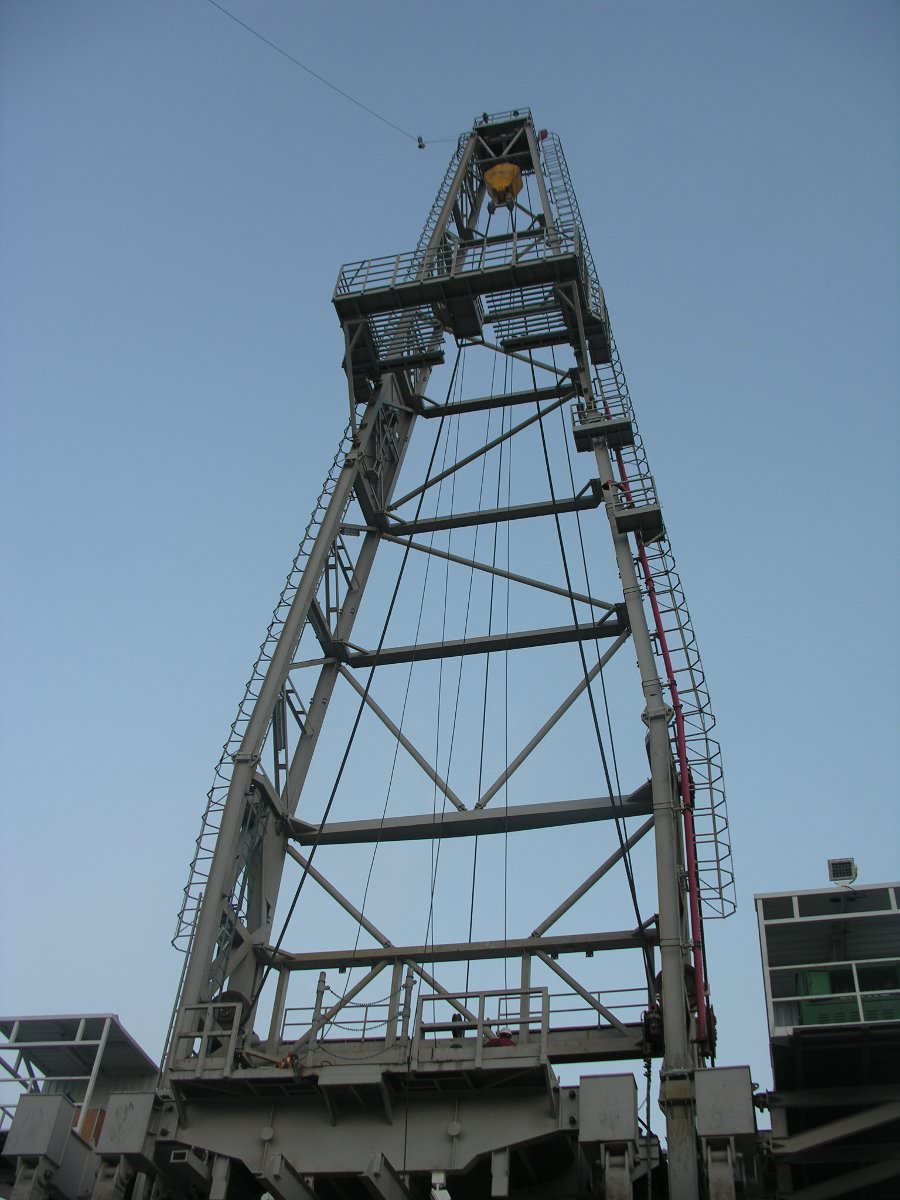

60 Hz Drilling Rig, Ideal for Central and South America
Unlike most surplus rigs offered in China, this DC-SCR land drilling rig runs on a frequency of 60 Hz, thus making it ideal for operation in Central America as well as most countries in South America.
Manufacturing of this drilling rig was finished in late 2013, but as the customer ran out of money it was never shipped. The rig has never been in operation and is brand new.
- Manufacturing date: October, 2013
- Condition: Brand new
Turnkey Drilling Rig Package
This 2000 hp land rig, like all of our drilling rigs, is a turn-key rig package that includes all supporting rig systems such as the solid control and electronic control system.
The only component not included with this rig is the blow out preventer, as the specifications often depend on the actual drilling application. However, if you let us know your requirements, we will add and integrate a suitable BOP system to this rig for you.
This drilling rig has been made in China and is equipped with components from recognized Chinese suppliers. However, key components such as the generator sets, shale shakers, and mud cleaner were supplied by international brand manufacturers.
In other words, we use Chinese components if we can assure quality and international components otherwise.
List of International Rig Component Suppliers
These are the components provided by international brand manufacturers:
- Diesel generator unit: CAT 3512B, 1200 kW (4 sets)
- Auxiliary generator unit: CAT C15, 292 kW (1 set)
- Shale shaker: Derrick Flo-line Cleaner 503 (3 sets)
- Mud cleaner: Derrick Flo-line Cleaner 503 (1 set)
- Air compressor: Sullair (2 sets)
All steel components are painted to shipbuilding standards and are completely coated with three layers of marine paint. This surface protection ensures perfect operation in humid and other corrosive environments.
Specifically, the following coatings have been applied to this land rig:
- Primer: Epoxy zinc rich primer, 85 μm
- Intermediate: Epoxy MIO coating, 85 μm
- Finish : Acrylic polyurethane coating, 80 μm
The final paint will be applied before shipment of the rig. This means you are free to choose your own color.
